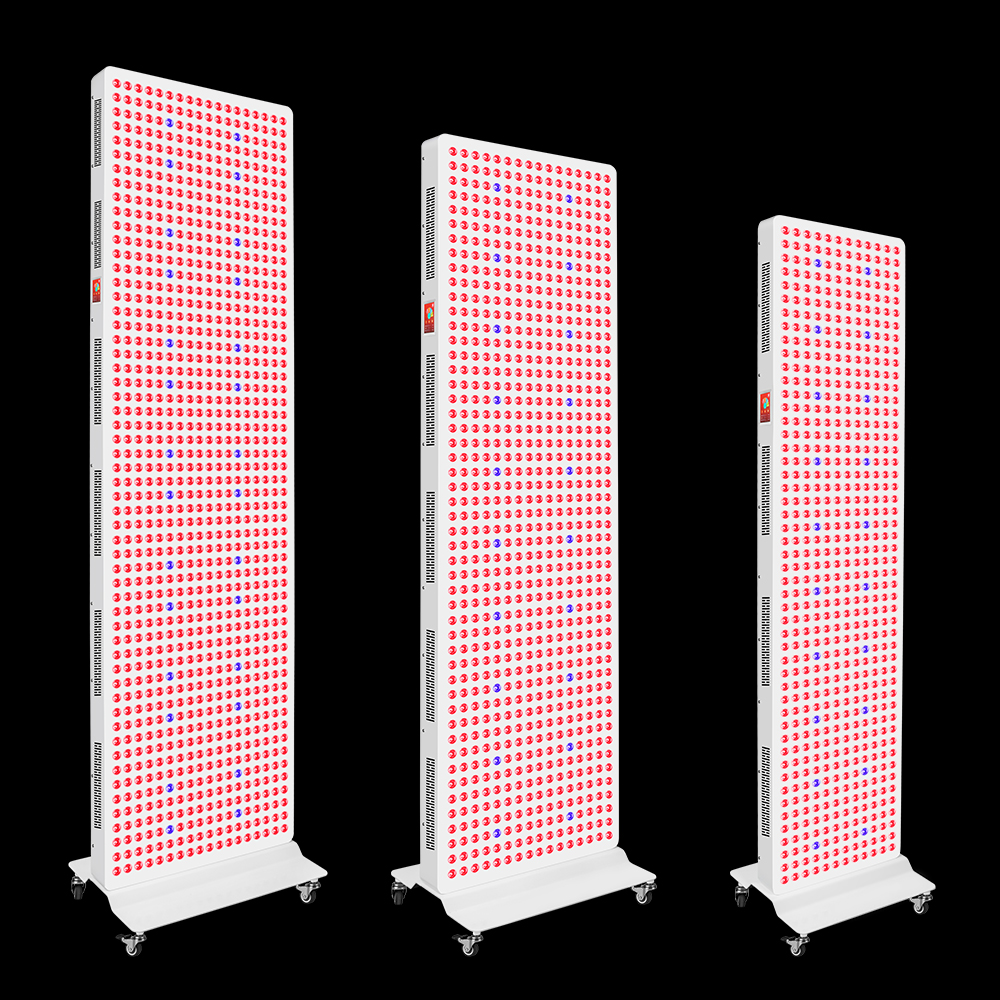

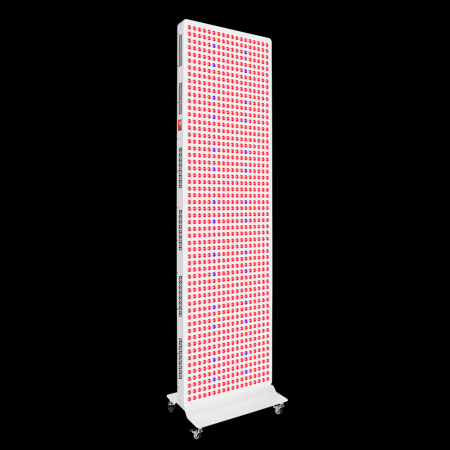

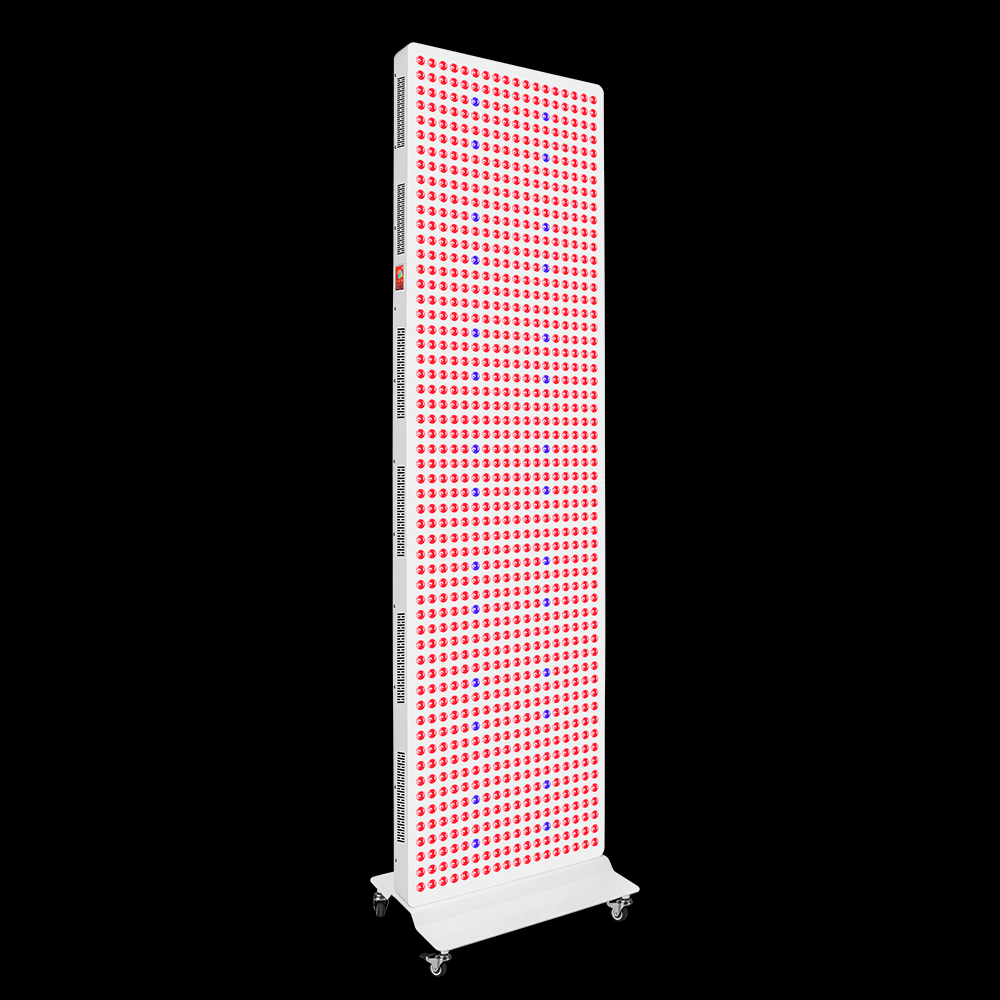

Ultra Series Red Light Therapy LED Panel 3000W ,4000W ,5040W with Touch Screen Controller ,6 Wavelengths ,Dimming ,Timer ,Pulse -Mobile Stands (Mobile Lifting Stands Optional)

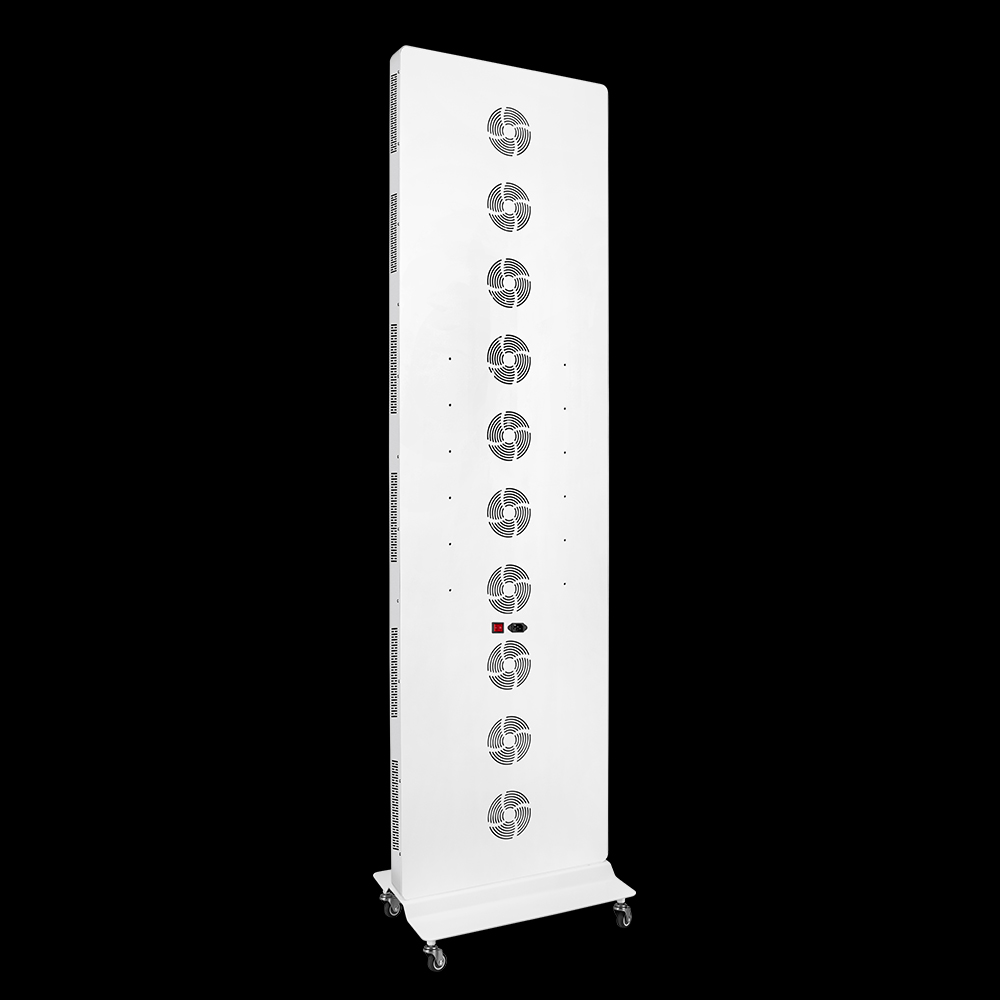

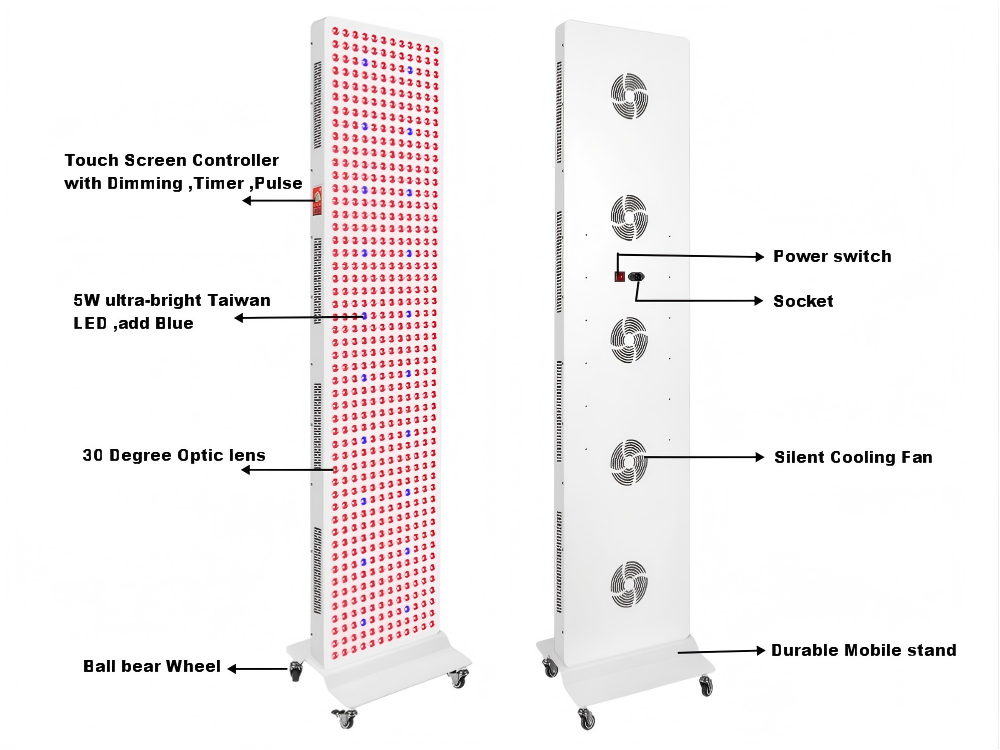

This professional-grade red light therapy device is the ideal choice for efficient health management. At its core are 5W ultra-bright Taiwan LED chips, delivering over 20% higher light intensity than competitors. The 30-degree precision lens focuses every beam for maximum efficiency. It operates ultra-quietly and comes with a movable stand for flexible placement. Most importantly, it features 6 specialized wavelengths with Blue for deeper tissue penetration and more comprehensive therapeutic effects, all within a safe, zero-radiation design for close-range use.

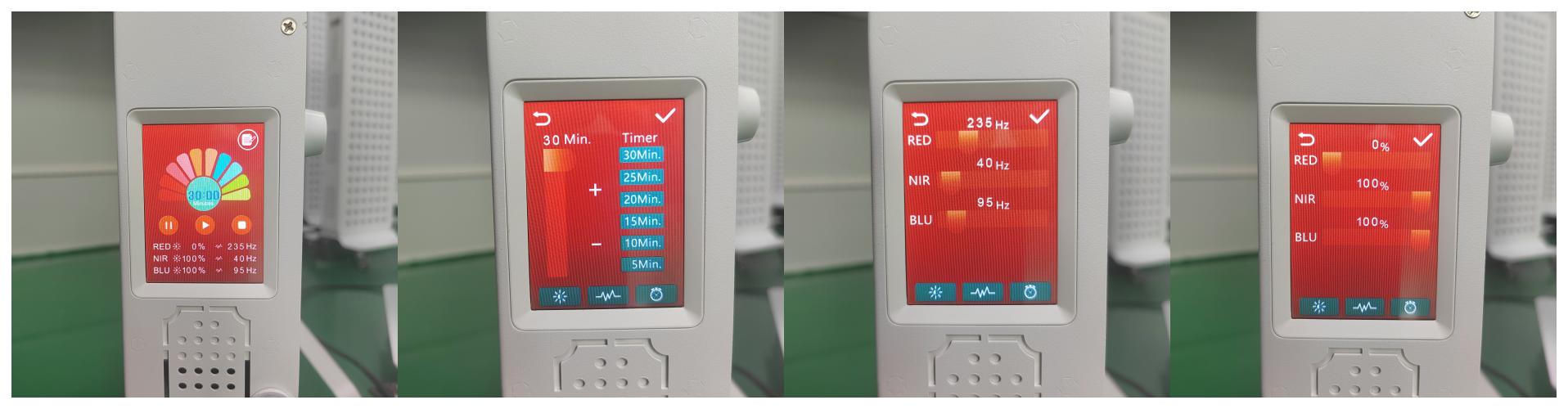

*Smart 3 Channel Touch screen controller

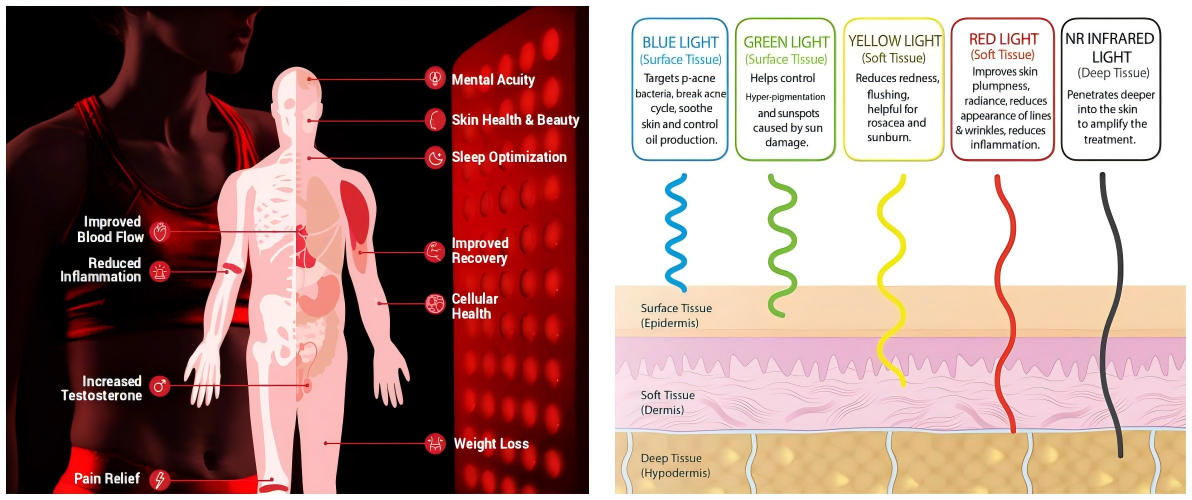

The benefits and wavelength of Red Light Therapy :
Red Light ( 630-660nm)
Targets Skin & Surface Layers – Absorbed mainly in the epidermis and dermis.
Primary Functions & Benefits:
Collagen & Elastin Production – Reduces fine lines, wrinkles, and improves skin elasticity.
Skin Healing & Rejuvenation – Accelerates wound healing, reduces acne, scars, and inflammation.
Hair Follicle Stimulation – Used to treat hair loss by improving follicle health and blood flow.
Surface Pain Relief – Helps with skin-related pain and mild muscle soreness close to the surface.
Near-Infrared Light (810–850 nm)
Penetrates Deep Tissues – Reaches muscles, joints, tendons, bones, and even the brain.
Primary Functions & Benefits:
Deep Pain & Inflammation Relief – Effective for arthritis, tendinitis, and muscle/joint pain.
Muscle Recovery & Repair – Enhances recovery from exercise or injury by reducing deep inflammation.
Neuroprotection & Brain Support – May support cognitive function and nerve recovery when applied transcranially.
Systemic Anti-Inflammatory Effects – Reduces overall inflammation throughout the body.
Blue Light ( 450-460nm)
One of its primary applications. 460nm blue light activates endogenous porphyrins within C. acnes bacteria, generating ROS that kill the bacteria and reduce inflammation, making it particularly suitable for inflammatory acne. Often used in combination with red light (633nm) in "red-blue light therapy" to combine antibacterial and anti-inflammatory/repair effects.
Specifications :

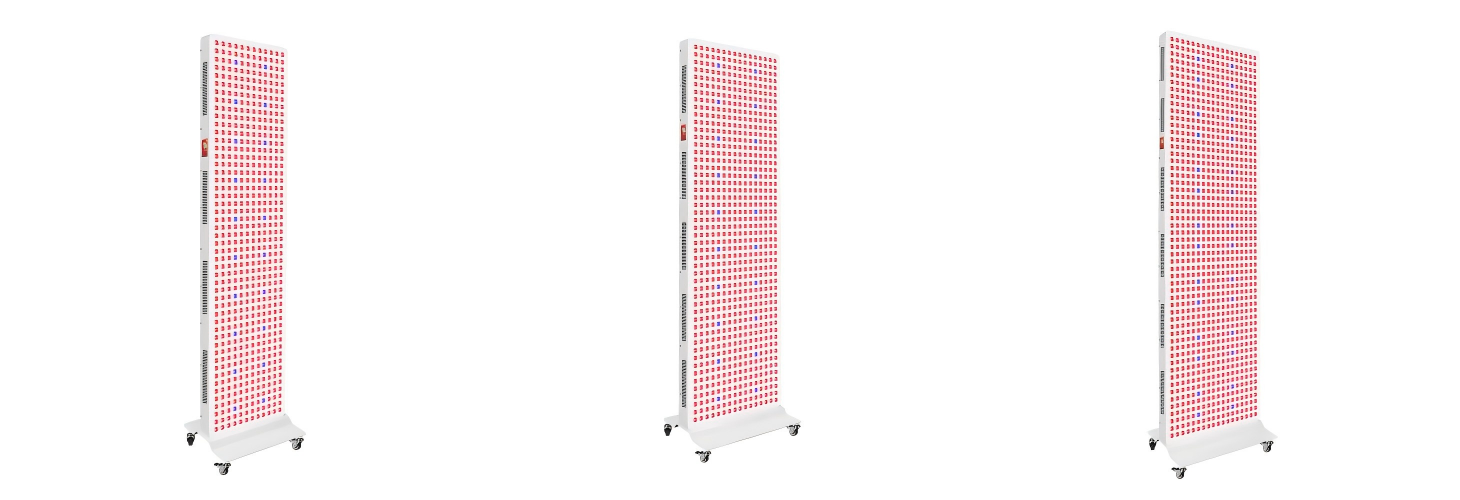

| Model : | Max 3000W | Max 4000W | Max 5040W |
| Name : | Red Light Therapy LED Panel | Red Light Therapy LED Panel | Red Light Therapy LED Panel |
| Product Size : | 150*38*7cm
| 163*48*7cm | 183*53*7cm |
| Package Size/Weight : | 164*48*19cm/27kg | 177*58*19cm/35kg | 197*65*20cm/44kg |
| Power : | 800 W | 1000 W | 1250 W |
| Input Voltage / Current : | AC85-265V/7.3A@110V | AC85-265V/9.1A@110V | AC85-265V/11.4A@110V |
| Number of LEDs : | 600PCS *5W | 800PCS *5W | 1008PCS *5W |
| LED Wavelength : | 460nm/630NM/660NM /810NM/830NM/850NM | 460nm/630NM/660NM/ 810NM/830NM/850NM | 460nm/630NM/660NM/ 810NM/830NM/850NM |
Lens Angle :
| 30 Degree | 30 Degree | 30 Degree |
| Timer : | Yes | Yes | Yes |
| Dimming : | 0-100% | 0-100% | 0-100% |
| Pulse : | Yes | Yes | Yes |
| Related Lifespan : | 100,000H | 100,000H | 100,000H |
EMF Emission :
| 0.0 µT @ 4” | 0.0 µT @ 4” | 0.0 µT @ 4” |
| Treatment Area : | 200cmx110cm@30cm | 210cmx130cm@30cm | 250cmx150cm@30cm |
Intensity :
| 315mw/cm2@15cm | 316mw/cm2@15cm | 322mw/cm2@15cm |
| Warranty : | 2 Years | 2 Years | 2 Years |

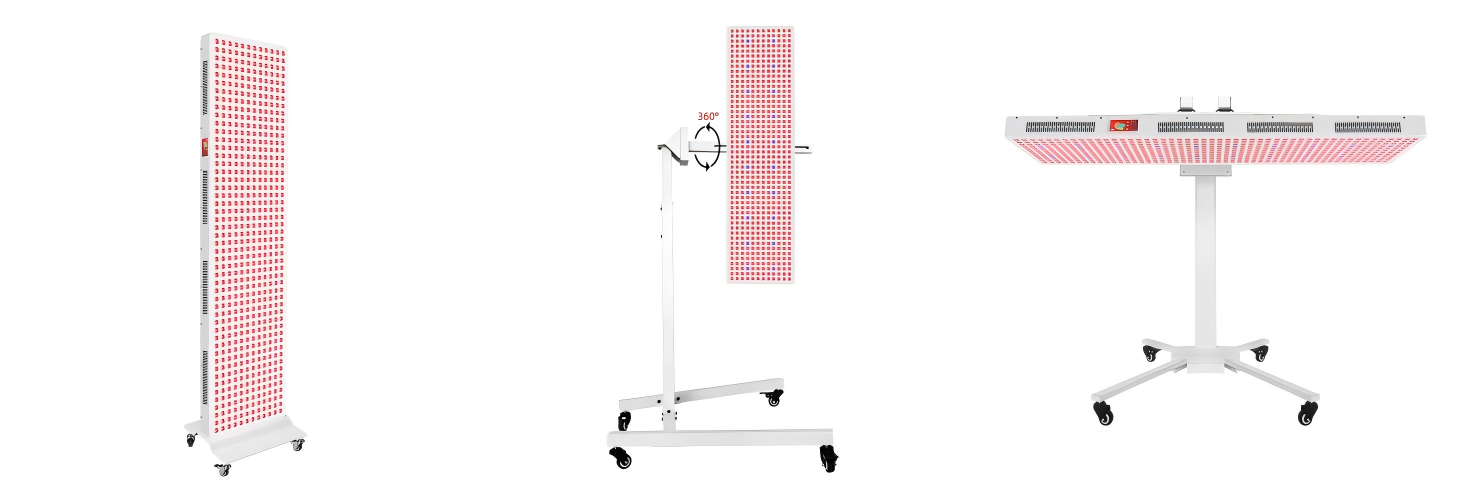

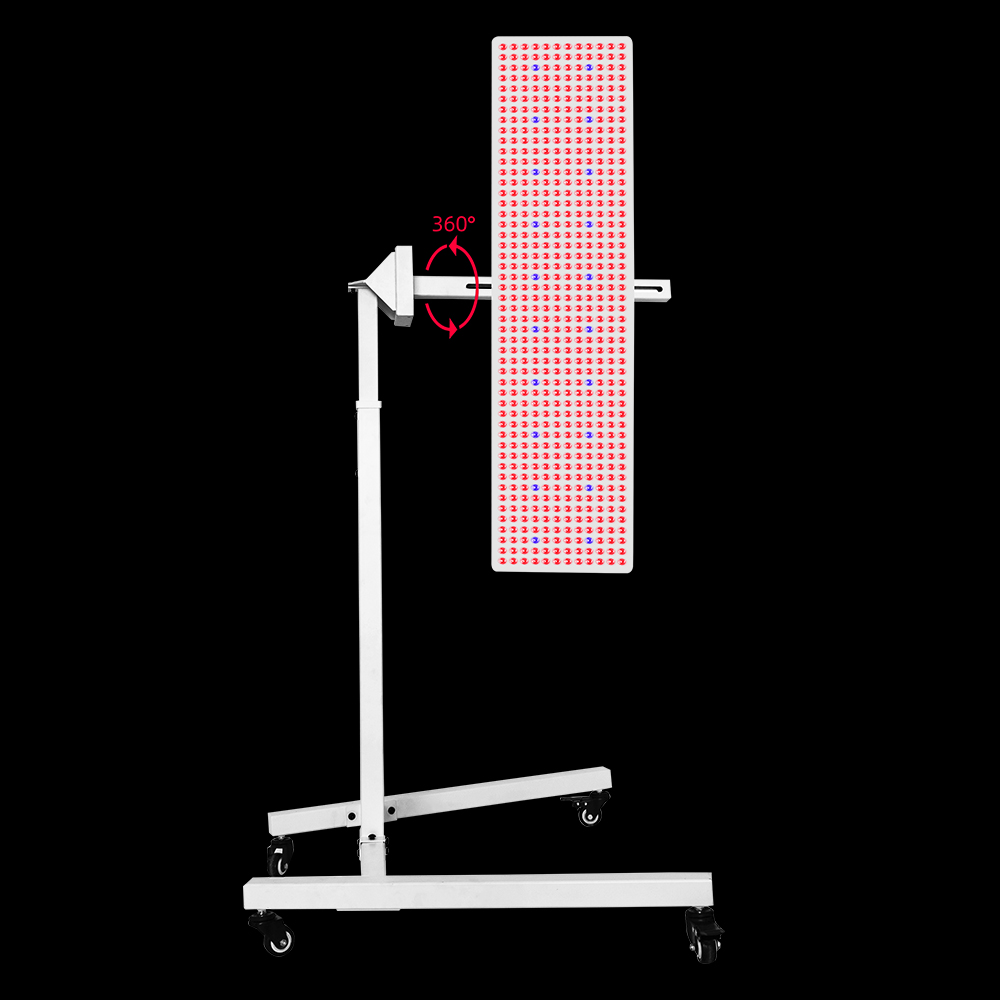

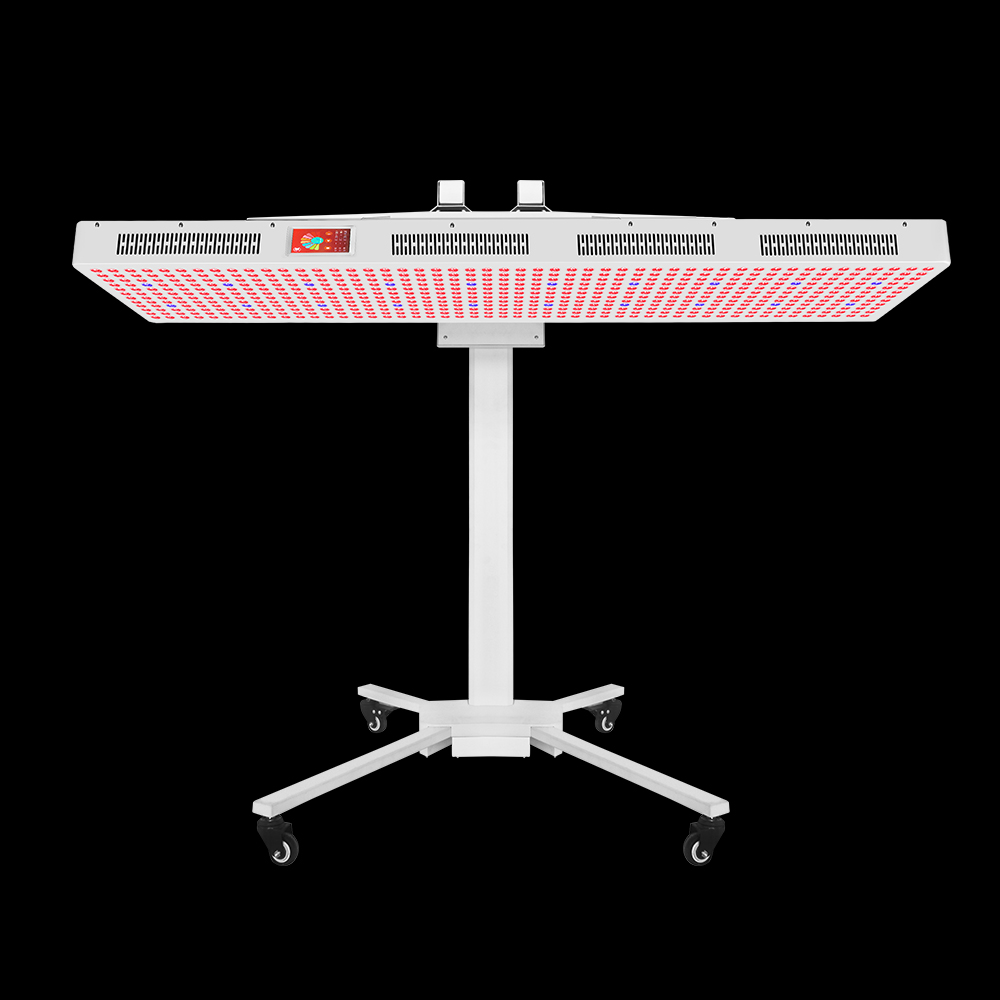

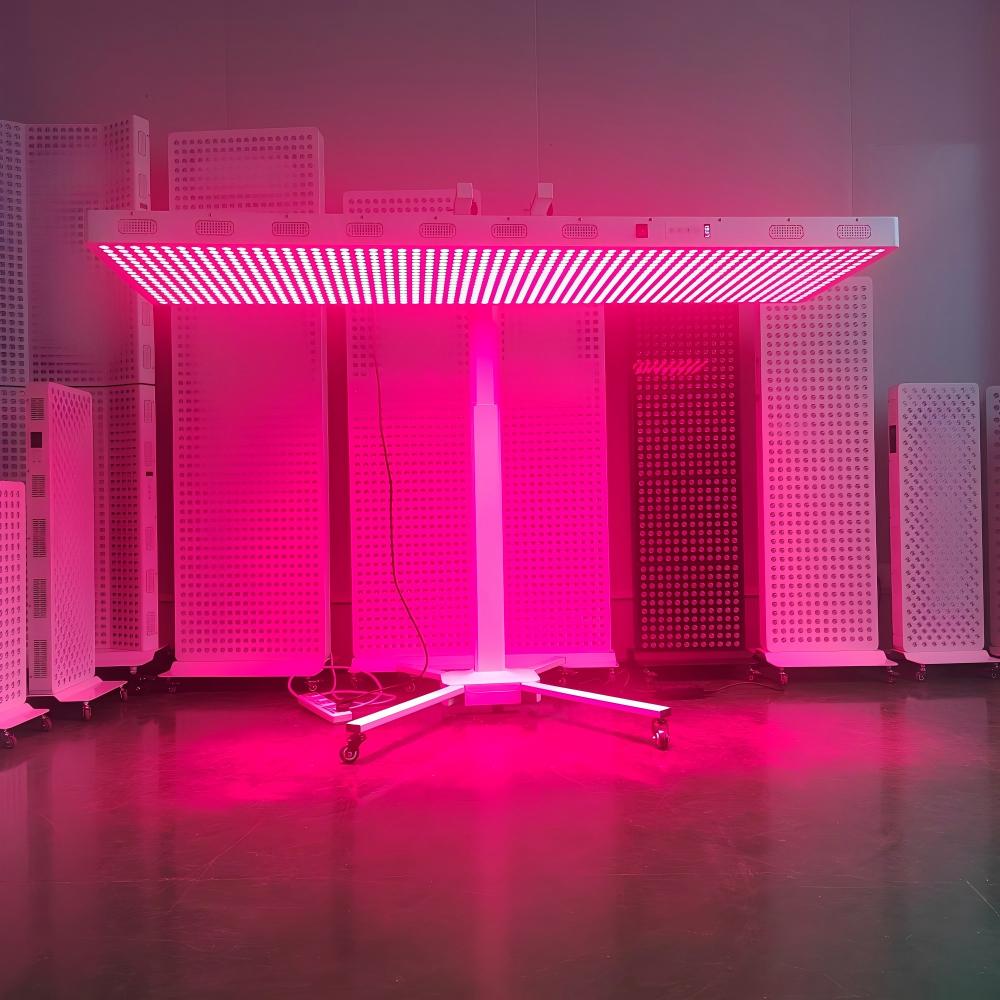

Flexiable Mounting systems : We offer standard mobile stand and optional mobile lifting and electric mobile lifting stands so that you can choose the way you like to use the red light .
*Extra cost for Optional mobile lifting and electric mobile lifting stands

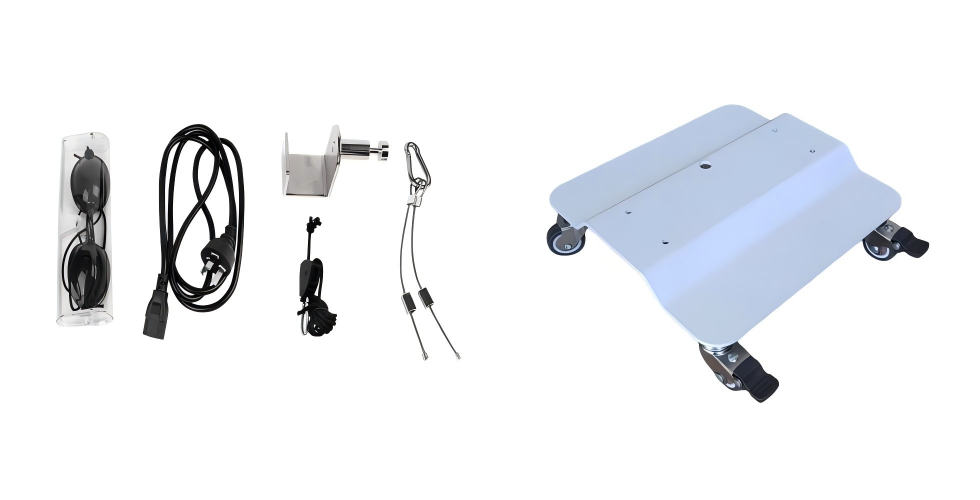

Accessories in the package :
| Eye Protection Patch | 1 pcs |
| Power Cord | 1 pcs |
| Rope Ratchet | 1 pcs |
| U Shape Hanger | 1 pcs |
Steel Hanger
| 1 pcs |
| Mobile Stand (need assemble wheels ) | 1pcs |
